Reshaping Climate with Geometry: How 3D Printing Enables Clean Tech

by Elissa Ross, PhD. CEO & Cofounder, Metafold 3D

Much has been made of the potential of 3D printing as a cleaner manufacturing methodology. The opportunities for reduced material inputs, goods that are produced closer to the site of consumption, and decreased emissions, not to mention the geo-political motivations for onshoring/reshoring. Indeed all this is true. However, what most people miss about the true promise of 3D printing is that we can make new kinds of things. The force multiplication potential of 3D printing stems from what it unlocks in terms of design rather than improvements in the manufacturing process over existing methods. It is a paradigm shift that requires creativity, knowledge of applications/industries and of course, mathematics.

3D printing throws out the geometric constraints of conventional processes like injection molding, allowing for radically new topologies, which we can roughly think of as the fundamental shape of an object. One way to leverage this freedom to create totally new kinds of parts is to design lattices. Lattices are part of a broader category of metamaterials — repetitive geometries assembled at the small scale (a unit cell) to have target properties at the macro scale. Wood is a naturally occurring example of a metamaterial, where the cellulose structure leads to its well-known anisotropic properties (cutting wood “against the grain” leads to different behaviour than “with the grain”). Building on the idea that macro behaviours can emerge from architecting the cellular properties, engineers have been tinkering with different metamaterials to achieve remarkable behaviours. Examples include lattices with very little material but are nevertheless extremely strong, or lattices with high surface area yet minimal volume. It is only within the last decade that 3D printing has made it possible to fabricate any of these metamaterials.

A direct application of 3D-printed metamaterials to clean tech is process intensification. The goal of process intensification is to make dramatic reductions in the size of unit operations (reactors, heat exchangers, separators etc.) within chemical plants, or to otherwise increase yields in a fixed volume. 3D printing is uniquely positioned to accelerate process intensification because it can manufacture self-supporting lattice structures with a massive amount of surface area.

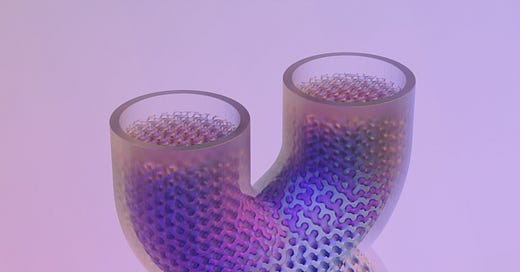

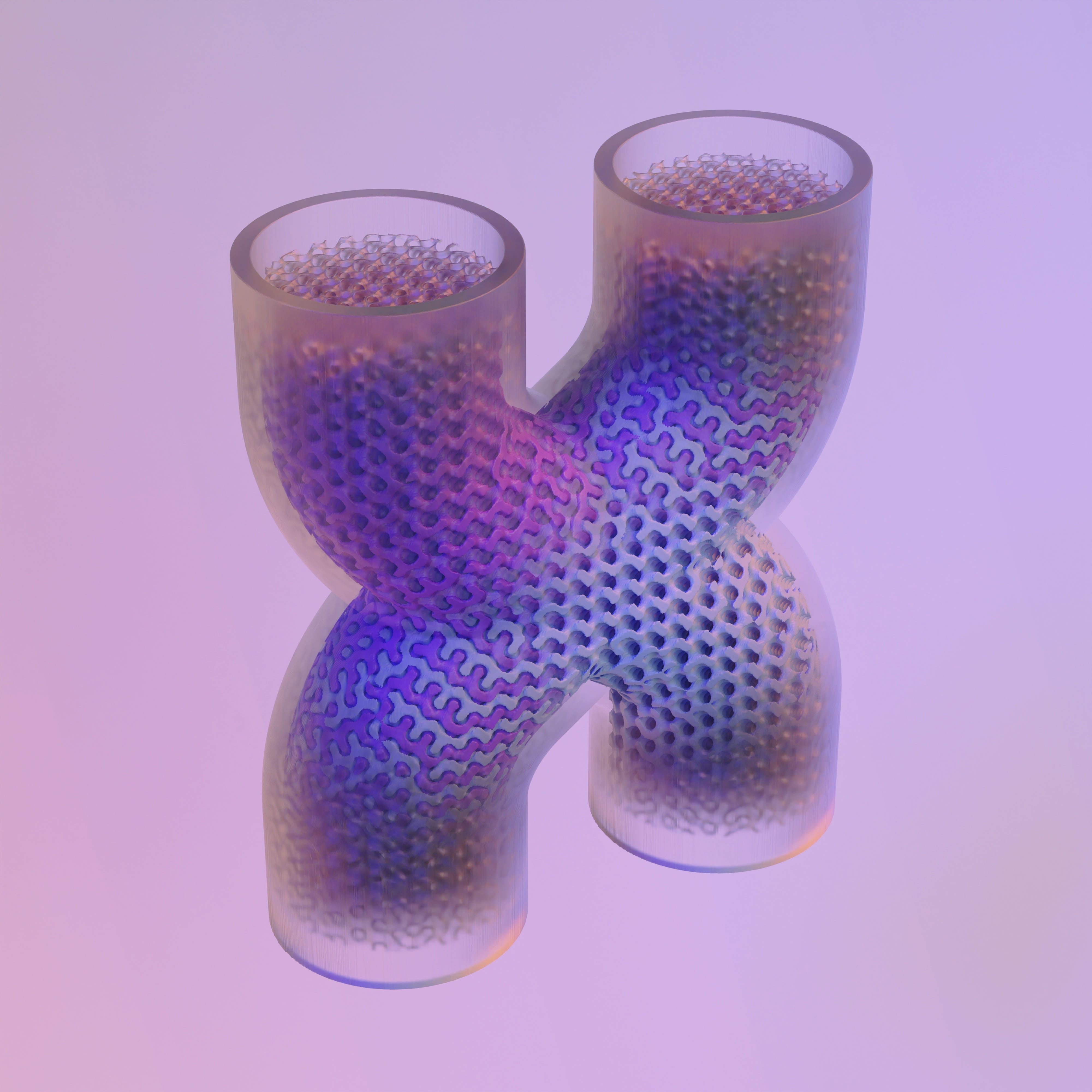

Heat exchange design featuring TPMS lattice fill. 3D printed heat exchangers may be up to 50% more efficient than traditionally manufactured versions.

For example, high surface-area 3D printed heat exchangers have demonstrated increased efficiency improvements of 50% or more. While these are currently being used primarily in performance applications, given the ubiquity of heat exchange and the critical role it plays in everyday life, the potential for 3D printing to reimagine energy management is enormous.

Additional examples of process intensification via 3D printing can be found in direct air capture, bioreactors, gasification for syngas and hydrogen, catalysis, and pyrolysis. In all cases, 3D printing and its “unlimited complexity” allow us to pack surface area within smaller volumes, increasing the air-surface interface to capture carbon, transfer heat, filter fluids, incubate stem cells, or otherwise facilitate chemical reactions. Intensifying chemical reactions across a range of industries has the potential to make a huge swath of businesses much more sustainable, but also more competitive.

To achieve these dramatic wins in process intensification, engineers have been turning to special high surface area geometries called Triply Periodic (Minimal) Surfaces (TPMS). These geometries were initially investigated in the 1860s by the German mathematician Hermann Schwarz better known for his work in complex analysis. Notably his work contained no pictures — the existence of TPMS was established through mathematical argument, with no apparent focus on the physical manifestation of these shapes. I’ll skip the rant on the importance of funding pure mathematics, but I conjecture that Schwartz would be shocked to see the broad reach of his research program today.

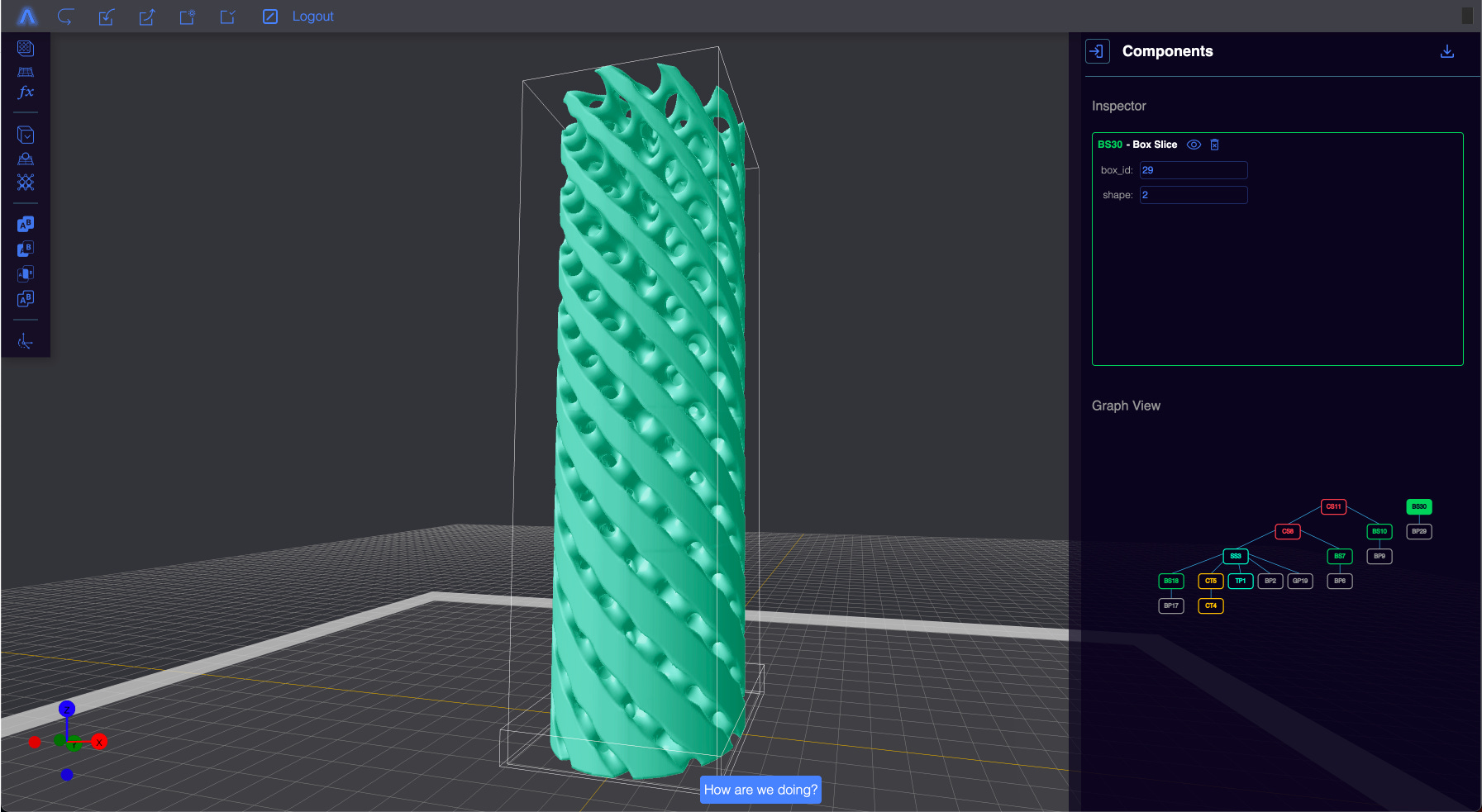

Engineers are using 3D printing to create new kinds of forms. A 3D printed static mixer can more effectively mix fluids while consolidating parts.

While engineers have embraced the potential of 3D printing and the new shapes like TPMS’s afforded by the methodology, they have also struggled to adjust their geometric mindsets due to antiquated software and companion training. Existing digital design software has led many to spend frustrating hours trying to achieve the promised “free complexity” of 3D printing, waiting for bloated geometry-heavy files to load, process and slice in preparation for printing. Although the developments of the 3D printers themselves have been astonishing over the last decade, the digital pipes that feed the machines have yet to be updated. As a result, many incredible innovations in high surface area clean tech remain on the bench, small-scale prototypes waiting for the digital manufacturing infrastructure to keep up.

While software has lagged behind the flashier improvements in 3D printing hardware, a new class of software application is ready to handle the heightened level of complexity. Up until very recently, the backbone of almost all CAD software was based on licensing one of just a handful of geometry kernels, which dictates and limits the geometry handling of the software. Several startups (mine among them) motivated by 3D printing, have written new geometry kernels that take advantage of GPU acceleration and implicit modeling to actually realize that “free complexity” we were advertised.

More work is required! These same startups face an uphill battle educating and interfacing with engineers and their existing software. The largest challenges are in the pathway from digital model to simulation-ready data, and finally to machine inputs. Currently, the only answer to both questions is to use the “same old pipes” which fundamentally limit the scale and complexity that is possible. Furthermore, the need to reformat data en route to the printer introduces a loss of accuracy that can lead to inconsistencies in the printed parts — repeatability being another massive pain point for the whole industry.

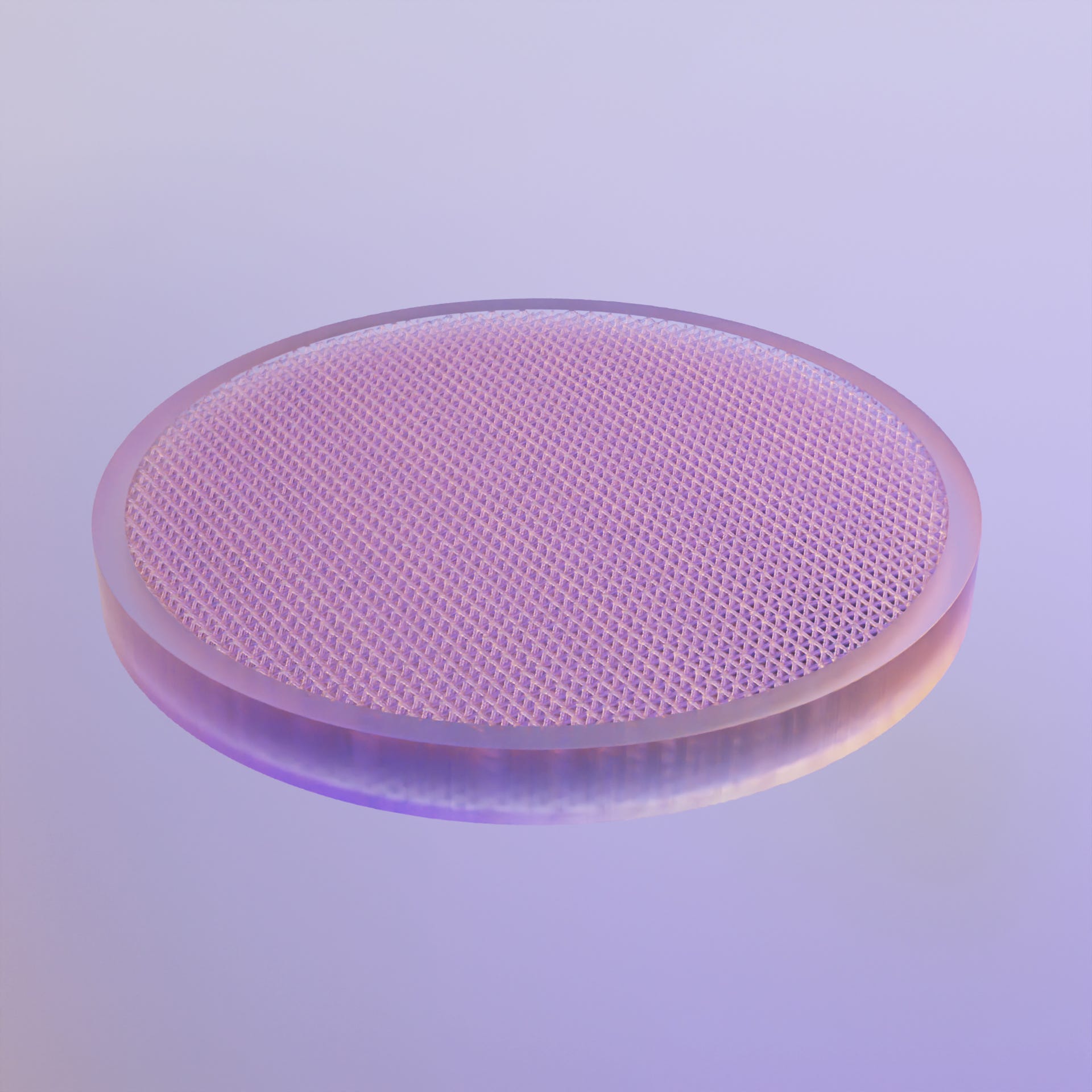

By packing high surface area lattices into small volumes, manufacturers can increase the efficiency of existing processes, in this case filtration media.

To realize the potential of 3D printing-enabled climate tech, we need cooperation between software and hardware, together with a pressing white hot burning problem (yep, climate change!). Digital Infrastructure that unlocks the true potential of 3D printing can be seen as part of a bigger push for software-enabled climate technology. While money is flowing into the climate sector, it has historically been focused on capital-intensive startups directly attending to the (very important) business of generating cleaner energy. To understand the role of software for 3D printing in climate enablement one needs to be willing to consider the second order effects of these investments. Pushing forward the 3D printing industry is essential in our fight against climate change. But what that looks like right now might be different from the fully-formed final vision.

Certainly, we need innovative engineers working on climate to be educated in 3D printing. We also need forward-looking manufacturers from all industries to prove the potential of 3D printing as a production methodology — adidas broke ground with their 3D printed midsole, followed by all major sportswear brands. Now other industries (including clean tech) are following their brave lead. As capital flows toward the right now problem-solving efforts, let’s also keep our view (and money) on humanity’s longer term projects, too. Like Schwartz’s contributions in pure mathematics, establishing a rigorous foundation now can pay dividends in the future.

---
